180KW 210KWH Mobile EV Charging Solutions Mobile Charger EV With PV Photovoltaic Panels

180KW 210KWH Mobile EV Charging Solutions Mobile Charger EV With PV Photovoltaic Panels

Brand Name: DOOR
Model Number: MCP-A-P
MOQ: 1PC
Price: Negotiable
Payment Terms: T/T, L/C, Western Union
Detail Information
Place of Origin:
Guangdong, China
Battery Capacity:
210kWh
Battery Voltage:
700Vdc
Charging Power:
180KW
Charing Gun Type:
CCS1/CCS2
Voltage Range:
200~1000Vdc
Communication Protocol:
OCPP1.6J
AC Output:
100KW
DC Input:
250A
PV Input:
1.4KW
AC Input:
100KW
0perating Temperature:
-20~65C°
Protection Degree:
IP54
Battery Cycle Life:
>5000 Cycles
Thermal Management:
Liquid Cooling
HMI:
13-in Touch Screen
Dimension (L*W*H):
2350*1400*1600mm
Weight:
<2900Kg
Highlight:

210KWH Mobile Ev Charging Solutions

,

180KW Mobile Ev Charging Solutions

,

180KW Mobile Charger EV

Product Description

180KW MOBILE EV CHARGING SOLUTION WITH PV PHOTOVOLTAIC PANELS INPUT 210KWH HIGH BATTERY CAPACITY WITH 13-IN TOUCH SCREEN

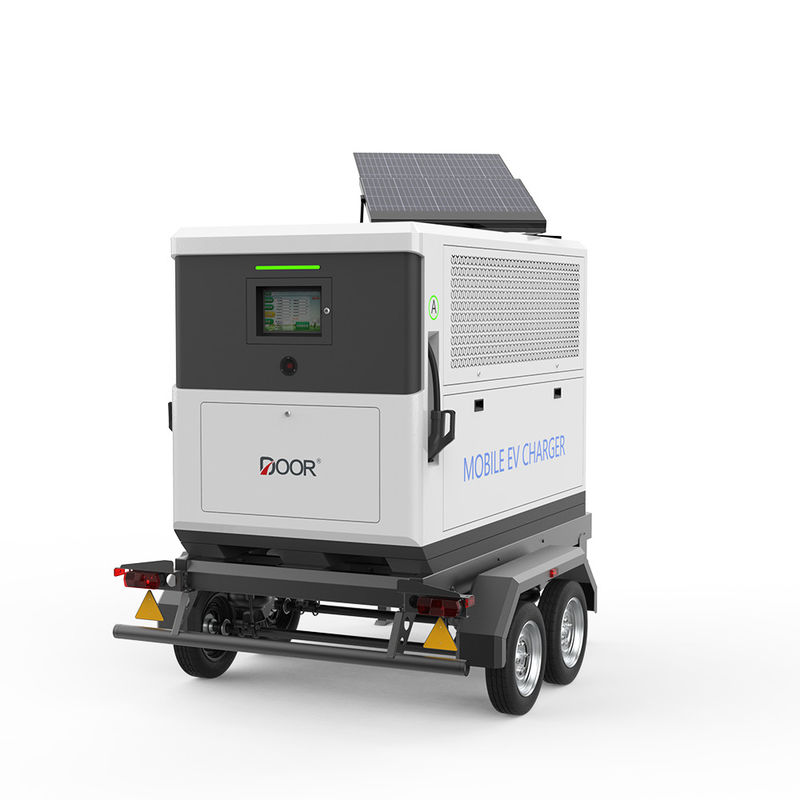

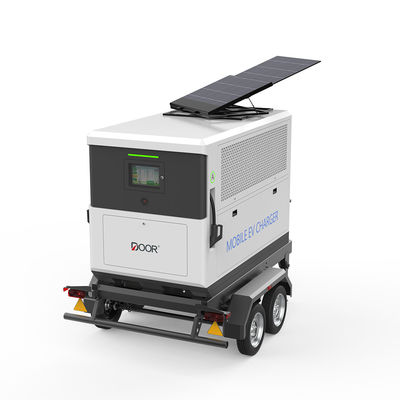

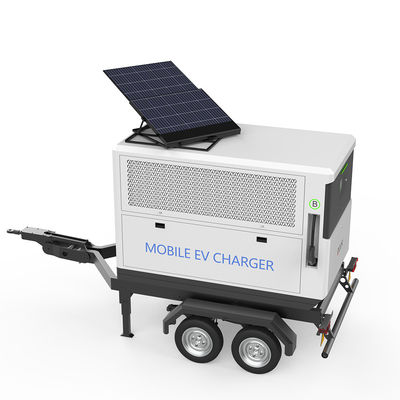

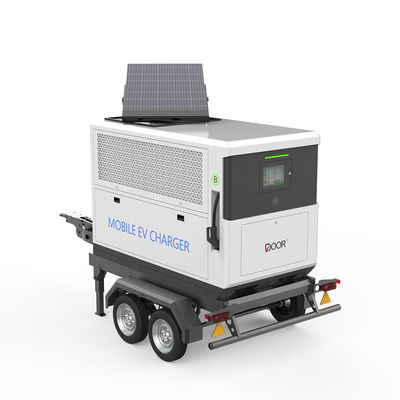

Mobile EV Charger Trailer (PV Version)


This innovative system boasts an impressive 180 kW charging power with dual charging guns and a substantial 210 kWh energy storage capacity, supporting a wide range of battery charging methods. Enhanced with bifacial high-efficiency solar panels and an advanced tracking system, power generation is elevated by an impressive 30%. Additionally, it features industrial power interfaces, catering to the charging needs of construction machinery, emergency rescue operations, and providing critical emergency power to high-load equipment.

Features:

  1. Integrated and Mobile Design:
    • The energy storage and charging system is designed with a multifunctional and integrated approach, ensuring flexible mobility regardless of location or environmental constraints. This effectively addresses varying power demands across diverse scenarios.
  2. Dynamic Power Distribution for High-Power Charging:
    • The system supports a robust 180 kW charging capacity, dynamically allocating power between the two charging guns to meet the charging requirements of multiple electric vehicles simultaneously.
  3. Solar Tracking System:
    • Incorporating a sophisticated 1.4 kW solar tracking system paired with high-efficiency photovoltaic panels, the system achieves a remarkable 40% increase in power generation efficiency. This eco-friendly feature harnesses the power of the sun to enhance the overall energy output of the trailer.
