LiFePO4 Battery Energy Storage System Waterproof Outdoor Battery Cabinet

LiFePO4 Battery Energy Storage System Waterproof Outdoor Battery Cabinet

Brand Name: DOOR
Model Number: ESS-A
MOQ: 1PC
Price: Negotiable
Payment Terms: T/T, L/C, Western Union
Detail Information
Place of Origin:
China
Battery Chemistry:
LiFePO4@GF
Total Capacity:
215kWh
Nominal Capacity:
280Ah
Nominal Voltage:
768V
Operating Voltage Range:
600V-768V
Max Charging/Discharging Current:
140A
Rated Output Power:
100kW
Rated Operating Voltage:
380Vac
Storage Temperature:
-20℃~45℃ & -4℉~113℉
Operating Temperature:
-20℃~60℃ & -4℉~140℉
Working Altitude:
≤ 3000m
Communication Type:
CAN/RS485
Dimension(L*W*H):
1400*1385*220mm
Max AC Current:
171A
Max DC Power:
130kW
Approved Grid Freqvency Range:
60Hz/50Hz±5Hz
AC Hamonic Voltage:
<3%
Highlight:

LiFePO4 Battery Energy Storage System

,

Waterproof Outdoor Battery Cabinet

,

Battery Energy Storage System Waterproof

Product Description

ENERGY STORAGE SYSTEM SOLUTIONS WATERPROOF OUTDOOR BATTERY CABINET LIFEPO4 BATTERY STORAGE



Industrial and Commercial Energy Storage System


Our C&I energy storage system utilizes safe, long-lasting LiFePO4 cells and includes a built-in Power Conversion System (PCS) and Energy Management System (EMS). It boasts a sleek and intelligent design, capable of monitoring and managing information in real-time through networking. Easy to install and space-saving, this system offers a cost-effective solution for demanding energy needs in industrial and commercial settings.

  1. All-In-One Design
    Our system features an all-in-one design that allows for convenient expansion according to requirements, reducing costs associated with user-side capacity expansion.

  2. Safe & Reliable
    The LFP battery cells used in our system meet international standards and incorporate an advanced Battery Management System (BMS) for real-time data feedback. Each battery cluster is designed for enhanced safety, ensuring reliable performance.

  3. Multi-Scenario Applications
    Our energy storage system supports diverse scenarios, including micro-grids and distributed generation. It enables peak-valley arbitrage, provides flexible standby power, and supports grid reactive power compensation, making it a versatile solution for various industrial and commercial applications.

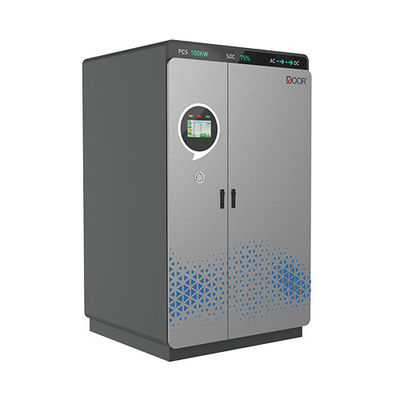

LiFePO4 Battery Energy Storage System Waterproof Outdoor Battery Cabinet 0

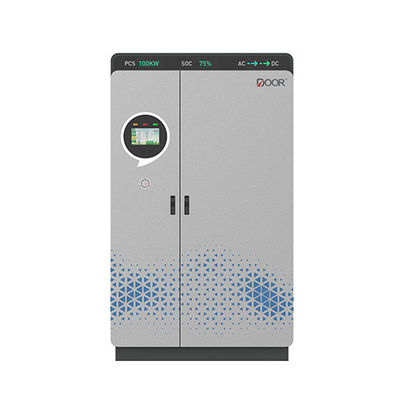

LiFePO4 Battery Energy Storage System Waterproof Outdoor Battery Cabinet 1

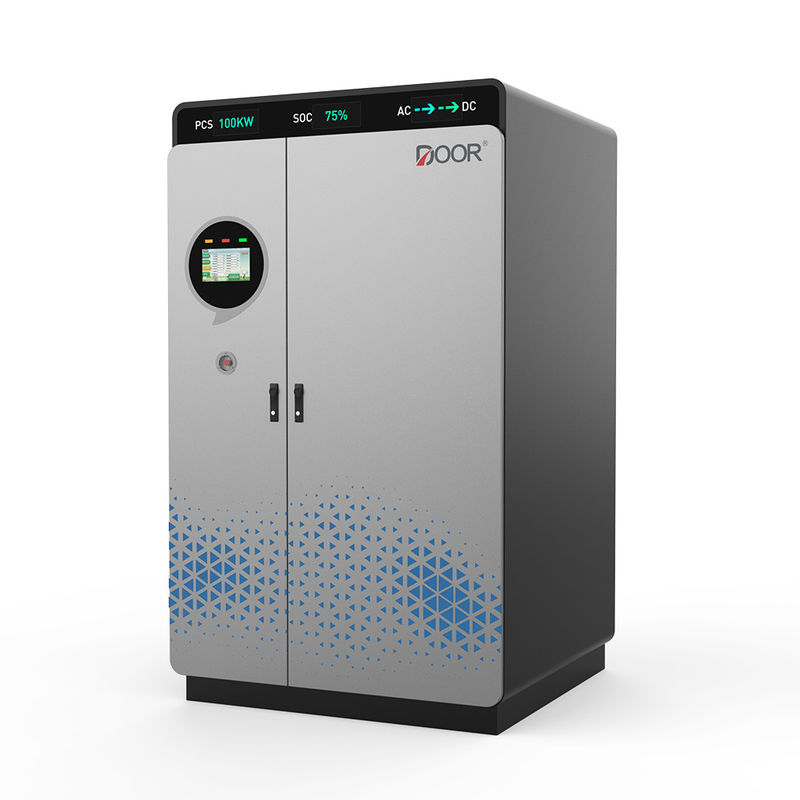

LiFePO4 Battery Energy Storage System Waterproof Outdoor Battery Cabinet 2LiFePO4 Battery Energy Storage System Waterproof Outdoor Battery Cabinet 3

LiFePO4 Battery Energy Storage System Waterproof Outdoor Battery Cabinet 4LiFePO4 Battery Energy Storage System Waterproof Outdoor Battery Cabinet 5
